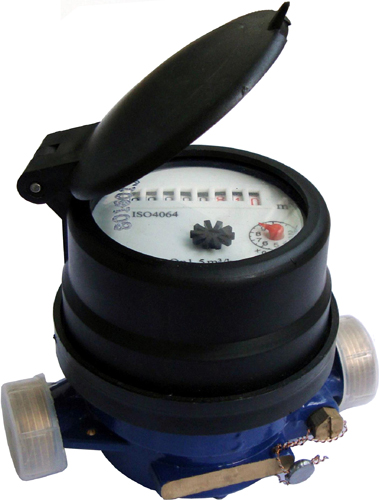

APPLICATION：MEASURING THE TOTAL VOLUME OF COLD POTABLE WATER PASSING THROUGH THE METER
SPECIALITY：
◆ BURGLARPROOF FUNCTION
◆ SPECIAL BURGLARPROOF STRUCTURE OF THE CAP AND THE PROTECTIVE RING
◆ HIGH ACCURACY
◆ NEGLIGIBLE HEAD LOSS AT WORKING FLOW-RATE
◆ MAGNET DRIVE WITH ANTI-MAGNETIC
◆ HIGH-QUALITY MATERIAL WITH LONG LIFE OF SERVICE
◆ RELIABLE IN DATA COLLECTING , HERMETICALLY SEALED REGISTER
◆ THE REGISTER IS SEALED AND IT COULD BE IN ANY POSITION WITHIN 360°,WHICH IS CONVENIENT FOR INSTALLATION.
WORKING CONDITION:
◆ THE MAX. ADMISSIBLE WATER PRESSURE: 1.6MPa
◆ WATER TEMPERATURE: WATER TEMP. UP TO 50℃
Maximum permissible error:
Between qt (included) and qs is ±2%;
Between qmin and qt (excluded) is ±5%.
NOTE: The technical data conform to ISO4064 standard, class B.
FLOW-ERROR CURVE
SPECIFICATION AND OVERAL DIMENSIONS
|
Description |
Unit |
Hydraulic data and dimensions |
|
Nominal size |
mm |
DN15 |
|
inch |
1/2 |
|
Overload flow-rate (qs) |
m3/h |
3 |
|
Permanent flow-rate (qp) |
m3/h |
1.5 |
|
Transitional flow-rate (qt) |
l/h |
120 |
|
Minimum flow-rate (qmin) |
l/h |
30 |
|
Min. reading |
l |
0.05 |
|
Max. reading |
m3 |
99999.9999 |
|
Nominal pressure |
MPa |
1.6 |
|
ΔPmax at qs |
MPa |
≤0.1 |
|
L |
mm |
110 |
|
I |
mm |
190 |
|
H |
mm |
86 |
|
B |
mm |
81 |

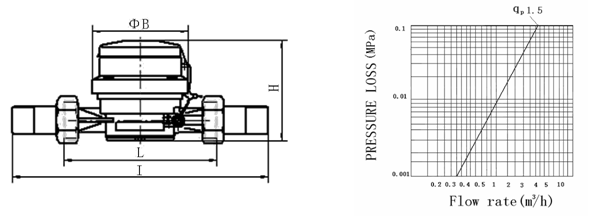

OVERALL DIMENSIONS PRESSURE LOSS CURVE
|
